Diffraction project datasets 9cpl
- Resolution: 2.4 Å
- Space group: P 65
Uniprot website for Q13470
PDB website for 9CPL
PDB validation report for 9CPL
doi:10.18430/M39CPL
Project details

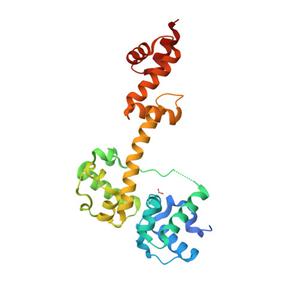

| Title | The ubiquitin-associated domain of human thirty-eight negative kinase 1, fused to the 2TEL crystallization chaperone via a 2-glycine linker |
| Authors | Samarawickrama, P., Averett, J., Doukov, T., Moody, J.D. |
| R / Rfree | 0.23 / 0.26 |
| Unit cell edges [Å] | 105.73 x 105.73 x 50.92 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

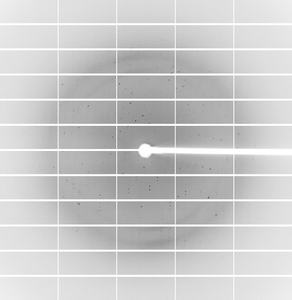

Dataset I3_Collect_1_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 360.0 |
| Phi [°] | 360.0 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2023-08-25 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
