Diffraction project datasets 9ckx
- Resolution: 1.98 Å
- Space group: P 1 21 1
Uniprot website for P63027
PDB website for 9CKX
PDB validation report for 9CKX
doi:10.18430/M39CKX
Project details

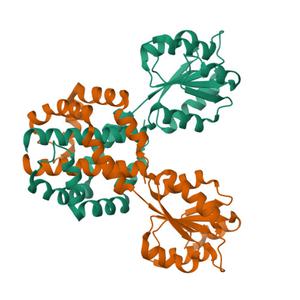

| Title | Crystal structure of Dsk2 Sti1 domain bound to a transmembrane domain |
| Authors | Wohlever, M.L., Binsabaan, S., Sankaran, B. |
| R / Rfree | 0.22 / 0.23 |
| Unit cell edges [Å] | 67.41 x 63.92 x 67.43 |
| Unit cell angles [°] | 90.0, 98.8, 90.0 |

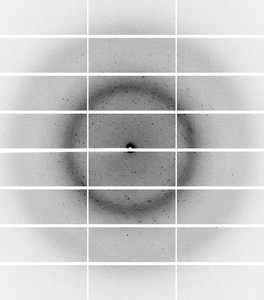

Dataset Pin14_3_#####.cbf details
| Number of frames | 700 (1 - 700) |
| Distance [mm] | 210.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 2.0 |
| Wavelength [Å] | 1.00001 |
| Experiment Date | 2024-06-22 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
