Diffraction project datasets 9b7h
- Resolution: 3.15 Å
- Space group: I 1 2 1
Uniprot website for A0FCI1
PDB website for 9B7H
PDB validation report for 9B7H
doi:10.18430/M39B7H
Project details
| Title | Crystal structure of the H3 hemagglutinin COBRA TJ2 |
| Authors | Dzimianski, J.V., DuBois, R.M. |
| R / Rfree | 0.22 / 0.27 |
| Unit cell edges [Å] | 77.25 x 117.68 x 198.62 |
| Unit cell angles [°] | 90.0, 91.0, 90.0 |

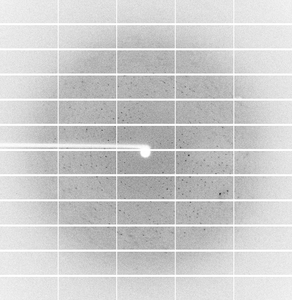

Dataset E6_1_6_#####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 1.03320 |
| Experiment Date | 2021-07-27 |
| Equipment | 23-ID-D at APS (Advanced Photon Source) |
