Diffraction project datasets 9awv
- Resolution: 1.488 Å
- Space group: P 21 21 21
Uniprot website for P00760
PDB website for 9AWV
PDB validation report for 9AWV
doi:10.18430/M39AWV
Project details
| Title | Crystal structure of trypsin at 300 Kelvin with benzamidine (duplicate) |
| Authors | Lima, L.M.T.R., de Sa Ribeiro, F. |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 54.33 x 57.40 x 67.34 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

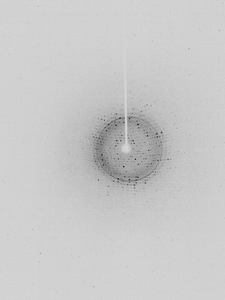

Dataset Trypsin_PEG_Ion_1_42_300K_N2_01_####.sfrm details
| Number of frames | 316 (1 - 316) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 276.75 |
| Kappa / Chi [°] | 24.0 |
| Phi [°] | 189.07 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2023-03-31 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |

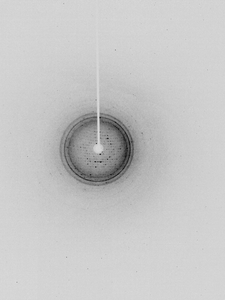

Dataset Trypsin_PEG_Ion_1_42_300K_N2_02_####.sfrm details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 255.54 |
| Kappa / Chi [°] | 28.59 |
| Phi [°] | 72.87 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2023-03-31 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
