Diffraction project datasets 9awu

  • Resolution: 1.482 Å
  • Space group: P 21 21 21
Download all images (540.4 MB)

Uniprot website for P00760
PDB website for 9AWU
PDB validation report for 9AWU

doi:10.18430/M39AWU

Project details

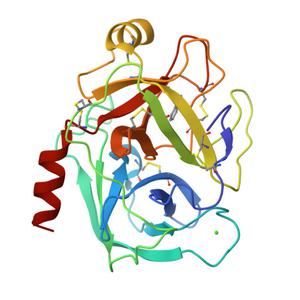

Title Crystal structure of trypsin at 300 Kelvin with benzamidine
Authors Lima, L.M.T.R., de Sa Ribeiro, F.
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 54.33 x 57.39 x 67.41
Unit cell angles [°] 90.0, 90.0, 90.0

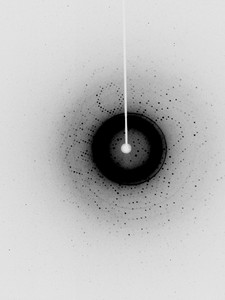

Dataset Trypsin_PEG_Ion_1_42_300K_01_####.sfrm details

Number of frames 316 (1 - 316)
Distance [mm] 37.0
Oscillation width [°] 0.50
Omega [°] 276.75
Kappa / Chi [°] 24.0
Phi [°] 357.07
Wavelength [Å] 1.54184
Experiment Date 2022-01-05
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

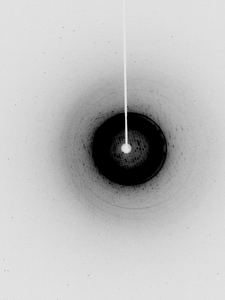

Dataset Trypsin_PEG_Ion_1_42_300K_02_####.sfrm details

Number of frames 177 (1 - 177)
Distance [mm] 37.0
Oscillation width [°] 0.50
Omega [°] 277.55
Kappa / Chi [°] 23.0
Phi [°] 213.04
Wavelength [Å] 1.54184
Experiment Date 2022-01-05
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

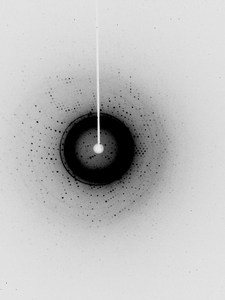

Dataset Trypsin_PEG_Ion_1_42_300K_2_01_####.sfrm details

Number of frames 178 (1 - 178)
Distance [mm] 37.0
Oscillation width [°] 0.50
Omega [°] 354.76
Kappa / Chi [°] 334.9
Phi [°] 16.93
Wavelength [Å] 1.54184
Experiment Date 2022-01-06
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

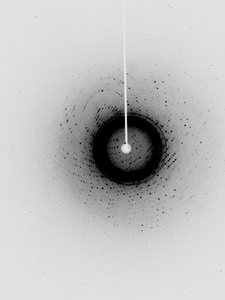

Dataset Trypsin_PEG_Ion_1_42_300K_2_02_####.sfrm details

Number of frames 316 (1 - 316)
Distance [mm] 37.0
Oscillation width [°] 0.50
Omega [°] 276.75
Kappa / Chi [°] 24.0
Phi [°] 205.07
Wavelength [Å] 1.54184
Experiment Date 2022-01-06
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
