Diffraction project datasets 9awd
- Resolution: 1.491 Å
- Space group: P 21 21 21
Uniprot website for P00760
PDB website for 9AWD
PDB validation report for 9AWD
doi:10.18430/M39AWD
Project details

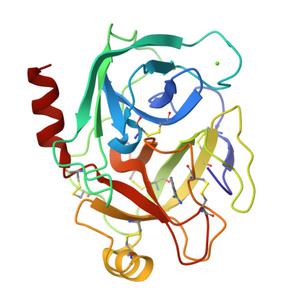

| Title | Crystal structure of trypsin at 175 Kelvin with benzamidine (triplicate) |
| Authors | Lima, L.M.T.R., de Sa Ribeiro, F. |
| R / Rfree | 0.24 / 0.27 |
| Unit cell edges [Å] | 54.33 x 58.23 x 66.25 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 9AWD (###).sfrm details
| Number of frames | 618 (1 - 618) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 276.75 |
| Kappa / Chi [°] | 24.0 |
| Phi [°] | 141.07 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2022-05-31 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
