Diffraction project datasets 9awa
- Resolution: 1.497 Å
- Space group: P 21 21 21
Uniprot website for P00760
PDB website for 9AWA
PDB validation report for 9AWA
doi:10.18430/M39AWA
Project details

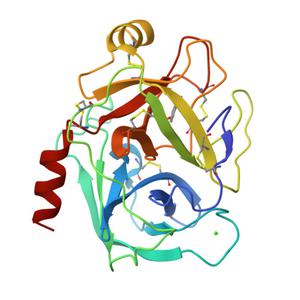

| Title | Crystal structure of trypsin at 150 Kelvin with benzamidine (triplicate) |
| Authors | Lima, L.M.T.R., de Sa Ribeiro, F. |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 53.65 x 57.14 x 64.79 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 9AWA (###).sfrm details
| Number of frames | 495 (1 - 495) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 276.75 |
| Kappa / Chi [°] | 24.0 |
| Phi [°] | 69.07 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2022-05-30 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
