Diffraction project datasets 9aw1
- Resolution: 1.5 Å
- Space group: P 21 21 21
Uniprot website for P00760
PDB website for 9AW1
PDB validation report for 9AW1
doi:10.18430/M39AW1
Project details

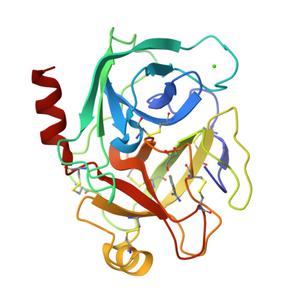

| Title | Crystal structure of trypsin at 125 Kelvin with benzamidine |
| Authors | Lima, L.M.T.R., de Sa Ribeiro, F. |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 54.52 x 58.30 x 66.72 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 9AW1 (###).sfrm details
| Number of frames | 362 (100 - 461) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 276.75 |
| Kappa / Chi [°] | 24.0 |
| Phi [°] | 182.57 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2021-09-24 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset 9AW1 (##).sfrm details
| Number of frames | 37 (10 - 46) |
| Distance [mm] | 37.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 276.75 |
| Kappa / Chi [°] | 24.0 |
| Phi [°] | 137.57 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2021-09-24 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
