Diffraction project datasets 9avs
- Resolution: 3.53 Å
- Space group: C 2 2 21
Uniprot website for P07602
PDB website for 9AVS
PDB validation report for 9AVS
doi:10.18430/M39AVS
Project details

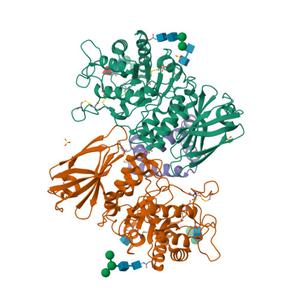

| Title | Human alpha-galactosidase A in complex with saposin B |
| Authors | Sawyer, T.K., Garman, S.C. |
| R / Rfree | 0.24 / 0.26 |
| Unit cell edges [Å] | 120.12 x 142.56 x 191.97 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

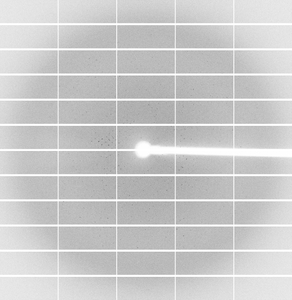

Dataset A7-TernGLADDAO_F10_5_#####.cbf details
| Number of frames | 720 (1 - 720) |
| Distance [mm] | 600.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 327.049 |
| Phi [°] | 327.049 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2019-11-23 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
