Diffraction project datasets 8v23
- Resolution: 2.0 Å
- Space group: P 21 21 21
Uniprot website for P12497
PDB website for 8V23
PDB validation report for 8V23
doi:10.18430/M38V23
Project details

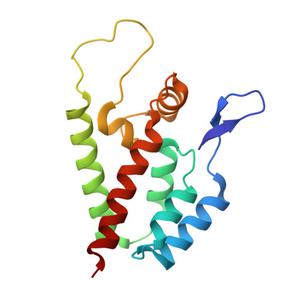

| Title | Crystal structure of HIV-1 capsid N-terminal domain in the presence of Lenacapavir |
| Authors | Briganti, L., Kvaratskhelia, M. |
| R / Rfree | 0.23 / 0.29 |
| Unit cell edges [Å] | 32.22 x 44.13 x 91.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

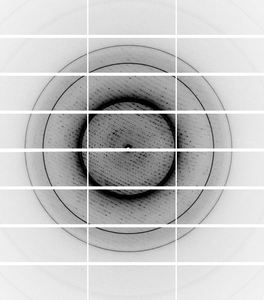

Dataset blu1-03_4_#####.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 90.5 |
| Wavelength [Å] | 1.00003 |
| Experiment Date | 2023-03-31 |
| Equipment | 4.2.2 at ALS (Advanced Light Source) |
