Diffraction project datasets 8th9

  • Resolution: 2.08 Å
  • Space group: I 41 2 2
Download all images (33.5 GB)

PDB website for 8TH9

doi:10.18430/M38TH9

Project details

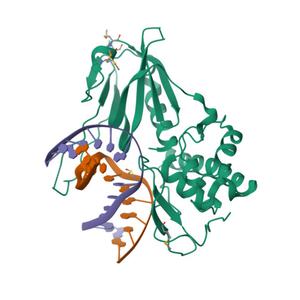

Title Structure of mammalian NEIL2 from Monodelphis domestica in complex with THF-containing DNA
Authors Eckenroth, B.E., Doublie, S.
R / Rfree 0.22 / 0.24
Unit cell edges [Å] 121.43 x 121.43 x 117.70
Unit cell angles [°] 90.0, 90.0, 90.0

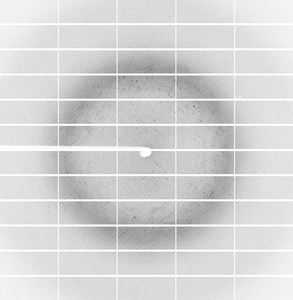

Dataset A7_opN2_1_#####.cbf details

Number of frames 1391 (1 - 1391)
Distance [mm] 400.0
Oscillation width [°] 0.10
Wavelength [Å] 1.03320
Experiment Date 2021-10-28
Equipment 23-ID-D at APS (Advanced Photon Source)

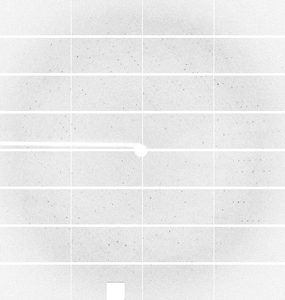

Dataset G9_opN2Au-dsF_1_######.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 450.0
Oscillation width [°] 0.20
Omega [°] 90.047
Wavelength [Å] 1.04115
Equipment 23-ID-D at APS (Advanced Photon Source)

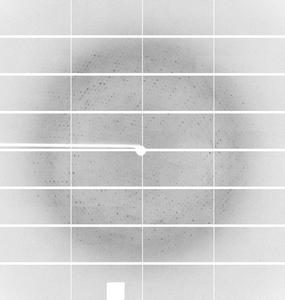

Dataset G9_opN2Au-dsF_2_2_######.cbf details

Number of frames 344 (1 - 344)
Distance [mm] 350.0
Oscillation width [°] 0.20
Omega [°] 269.89
Wavelength [Å] 1.04115
Equipment 23-ID-D at APS (Advanced Photon Source)

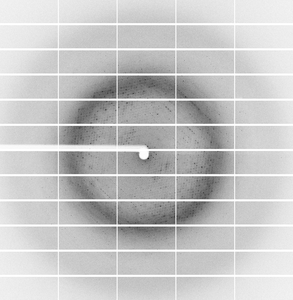

Dataset J14_opN2cutdsF14C13_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 350.0
Oscillation width [°] 0.20
Omega [°] 86.0
Wavelength [Å] 1.03319
Experiment Date 2019-11-01
Equipment 23-ID-D at APS (Advanced Photon Source)

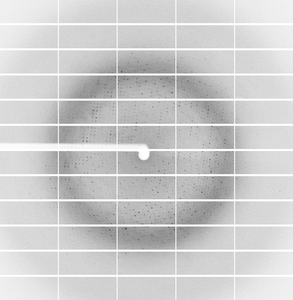

Dataset K15_opF14C13_Ba_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 400.0
Oscillation width [°] 0.20
Omega [°] 83.0
Wavelength [Å] 1.03319
Experiment Date 2019-11-02
Equipment 23-ID-D at APS (Advanced Photon Source)

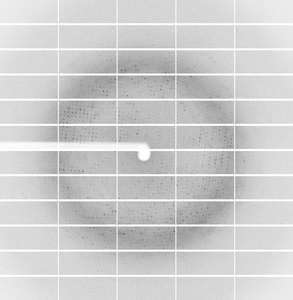

Dataset K2_opF14C13_Se-peak_1_#####.cbf details

Number of frames 900 (1 - 900)
Distance [mm] 450.0
Oscillation width [°] 0.20
Omega [°] 153.0
Wavelength [Å] 0.97942
Experiment Date 2019-11-02
Equipment 23-ID-D at APS (Advanced Photon Source)

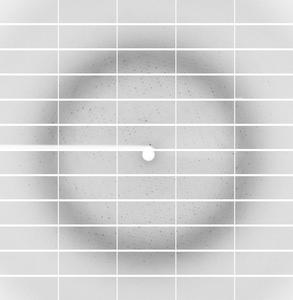

Dataset P4_opDNASe_1_#####.cbf details

Number of frames 1800 (1 - 1800)
Distance [mm] 500.0
Oscillation width [°] 0.20
Omega [°] 9.0
Wavelength [Å] 0.97942
Experiment Date 2020-03-22
Equipment 23-ID-D at APS (Advanced Photon Source)
