Diffraction project datasets 8pqk
- Resolution: 2.0 Å
- Space group: C 1 2 1
Uniprot website for P16234
PDB website for 8PQK
PDB validation report for 8PQK
doi:10.18430/m38pqk
Project details

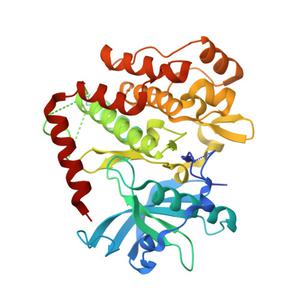

| Title | APO crystal structure of PDGFRA-T674I kinase domain |
| Authors | Teuber, A., Mueller, M.P., Rauh, D. |
| R / Rfree | 0.20 / 0.22 |
| Unit cell edges [Å] | 95.90 x 49.02 x 76.98 |
| Unit cell angles [°] | 90.0, 100.7, 90.0 |

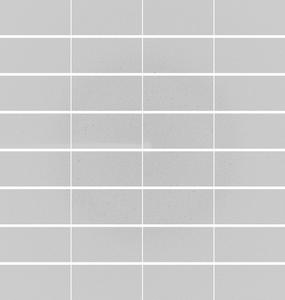

Dataset 08AT12_ds1_1_master.h5@##### details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 245.0 |
| Wavelength [Å] | 1.00004 |
| Equipment | X10SA at SLS (Swiss Light Source) |
