Diffraction project datasets 8pqj
- Resolution: 1.82 Å
- Space group: C 1 2 1
Uniprot website for P16234
PDB website for 8PQJ
PDB validation report for 8PQJ
doi:10.18430/m38pqj
Project details
| Title | PDGFRA wild-type kinase domain |
| Authors | Teuber, A., Mueller, M.P., Rauh, D. |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 96.38 x 49.18 x 77.04 |
| Unit cell angles [°] | 90.0, 100.8, 90.0 |

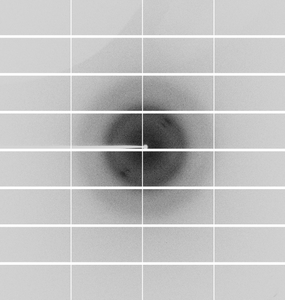

Dataset 01AT07_ds1_1_master.h5@##### details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 135.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 170.0 |
| Wavelength [Å] | 0.99986 |
| Equipment | X10SA at SLS (Swiss Light Source) |
