Diffraction project datasets 8p8e
- Resolution: 1.391 Å
- Space group: P 21 21 21
PDB website for 8P8E
PDB validation report for 8P8E
doi:10.18430/M38P8E
Project details

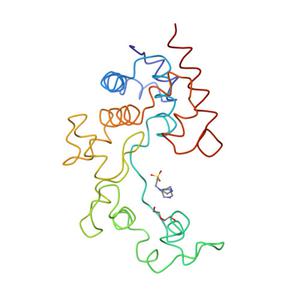

| Title | Crystal structure of endolysin gp46 from Pseudomonas aeruginosa bacteriophage vB_PaeM_KTN6 |
| Authors | van Raaij, M.J., Sanz-Gaitero, M. |
| R / Rfree | 0.13 / 0.16 |
| Unit cell edges [Å] | 41.80 x 43.20 x 126.18 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

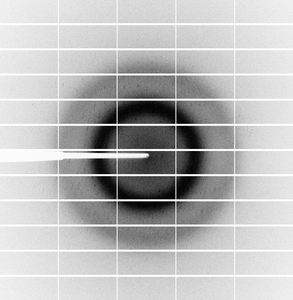

Dataset B2X1_3_####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 241.7 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 153.0 |
| Kappa / Chi [°] | -0.0003 |
| Phi [°] | 129.4255 |
| Wavelength [Å] | 0.97929 |
| Equipment | XALOC |
