Diffraction project datasets 8otl_data_8OTL
- Resolution: 2.108 Å
- Space group: C 2 2 21
Uniprot website for P9WGR1
PDB website for 8OTL
PDB validation report for 8OTL
doi:10.18430/M38OTL
Project details
| Title | structure of InhA from Mycobacterium tuberculosis in complex with 5-(((4-(2-hydroxyphenoxy)benzyl)(octyl)amino)methyl)-2-phenoxyphenol |
| Authors | Tamhaev, R., Maveyraud, L., Chebaiki, M., Lherbet, C., Mourey, L. |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 80.85 x 100.88 x 376.07 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

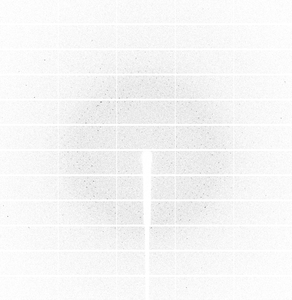

Dataset InhA-EG57-B5_1_####.cbf details
| Number of frames | 5000 (1 - 5000) |
| Distance [mm] | 390.5 |
| Oscillation width [°] | 0.06 |
| Omega [°] | 151.9994 |
| Kappa / Chi [°] | 0.0005 |
| Phi [°] | 359.9992 |
| Wavelength [Å] | 0.97625 |
| Equipment | ID30B at ESRF (European Synchrotron Radiation Facility) |
