Diffraction project datasets 8hkr
- Resolution: 2.4 Å
- Space group: P 41 21 2
PDB website for 8HKR
PDB validation report for 8HKR
doi:10.18430/M38HKR
Project details

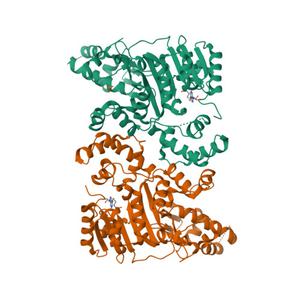

| Title | Crystal Structure of Histone H3 Lysine 79 (H3K79) Methyltransferase Rv2067c from Mycobacterium tuberculosis |
| Authors | Dadireddy, V., Singh, P.R., Kalladi, S.M., Valakunja, N., Ramakumar, S. |
| R / Rfree | 0.20 / 0.22 |
| Unit cell edges [Å] | 109.15 x 109.15 x 216.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

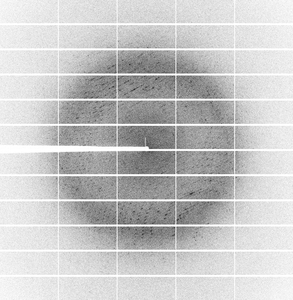

Dataset MT67-MT67_H3pep_I3C_w1_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 226.5 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 72.0 |
| Kappa / Chi [°] | -9999.0 |
| Phi [°] | -9999.0 |
| Wavelength [Å] | 1.70000 |
| Equipment | ID29 at ESRF (European Synchrotron Radiation Facility) |

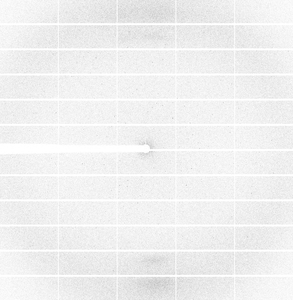

Dataset MT67-MT67_NaI_150mM_soak_5min_w1_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 392.0 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | -9999.0 |
| Phi [°] | -9999.0 |
| Wavelength [Å] | 1.70000 |
| Equipment | ID29 at ESRF (European Synchrotron Radiation Facility) |
