Diffraction project datasets 8g22
- Resolution: 1.0 Å
- Space group: H 3
PDB website for 8G22
PDB validation report for 8G22
doi:10.18430/m38g22
Project details
| Title | Crystal Structure of the dTDP-4-dehydrorhamnose Reductase from Streptococcus pneumoniae. |
| Authors | Minasov, G., Shuvalova, L., Brunzelle, J.S., Kiryukhina, O., Satchell, K.J.F., Center for Structural Biology of Infectious Diseases (CSBID), Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.13 / 0.14 |
| Unit cell edges [Å] | 120.18 x 120.18 x 48.08 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

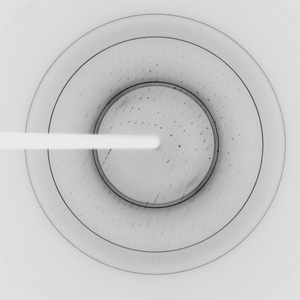

Dataset idp98100-102-c_1_2_10.001_master.h5@##### details
| Number of frames | 1500 (1 - 1500) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | -20.0 |
| Wavelength [Å] | 0.77482 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
Dataset idp98100-102-c_1_2_10.002_master.h5@##### details
| Number of frames | 1500 (1 - 1500) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | -20.0 |
| Wavelength [Å] | 0.77482 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
