Diffraction project datasets 8g1y
- Resolution: 1.43 Å
- Space group: C 1 2 1
PDB website for 8G1Y
PDB validation report for 8G1Y
doi:10.18430/m38g1y
Project details

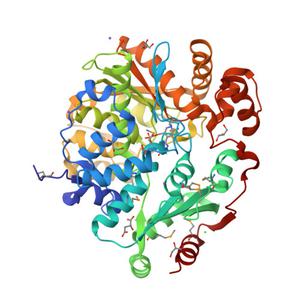

| Title | Crystal Structure of the Threonine Synthase from Streptococcus pneumoniae in complex with Pyridoxal 5-phosphate. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Satchell, K.J.F., Center for Structural Biology of Infectious Diseases (CSBID), Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 86.46 x 81.41 x 139.47 |
| Unit cell angles [°] | 90.0, 94.6, 90.0 |

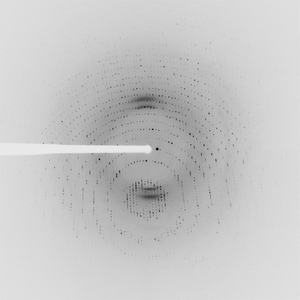

Dataset idp98078-102sm-a_1_1_8.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -35.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2021-01-29 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
