Diffraction project datasets 8fzu
- Resolution: 1.9 Å
- Space group: P 65
PDB website for 8FZU
PDB validation report for 8FZU
doi:10.18430/M38FZU
Project details

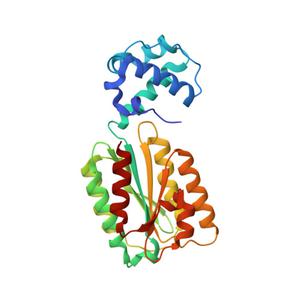

| Title | The von Willebrand factor A domain of human capillary morphogenesis gene II, flexibly fused to the 1TEL crystallization chaperone, Thr-Val linker variant, Expressed with SUMO tag |
| Authors | Gajjar, P.L., Litchfield, C.M., Callahan, M., Redd, N., Doukov, T., Lebedev, A., Moody, J.D. |
| R / Rfree | 0.24 / 0.27 |
| Unit cell edges [Å] | 164.10 x 164.10 x 54.40 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

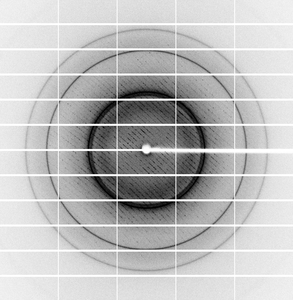

Dataset A2_1_#####.cbf details
| Number of frames | 1200 (1 - 1200) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.15 |
| Omega [°] | 234.0 |
| Phi [°] | 234.0 |
| Wavelength [Å] | 1.00000 |
| Experiment Date | 2022-03-21 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
