Diffraction project datasets 8fz4
- Resolution: 2.19 Å
- Space group: C 1 2 1
PDB website for 8FZ4
PDB validation report for 8FZ4
doi:10.18430/M38FZ4
Project details

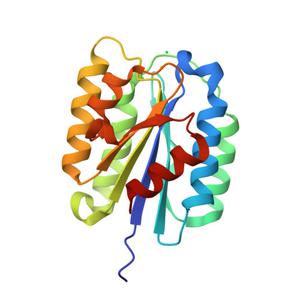

| Title | The von Willebrand factor A domain of Anthrax toxin receptor 2 |
| Authors | Pedroza-Romo, M.J., Soleimani, S., Lewis, A., Smith, T., Brown, S., Doukov, T., Moody, J.D. |
| R / Rfree | 0.22 / 0.26 |
| Unit cell edges [Å] | 78.24 x 88.97 x 59.78 |
| Unit cell angles [°] | 90.0, 128.1, 90.0 |

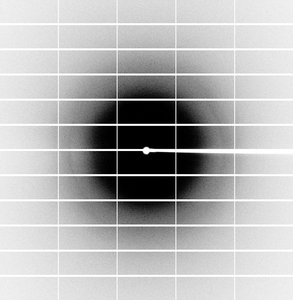

Dataset L3_1_#####.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 359.999 |
| Phi [°] | 359.999 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2021-10-23 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
