Diffraction project datasets 8ft8
- Resolution: 1.6 Å
- Space group: P 65
PDB website for 8FT8
PDB validation report for 8FT8
doi:10.18430/M38FT8
Project details

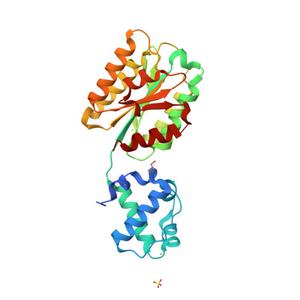

| Title | The von Willebrand factor A domain of human capillary morphogenesis gene II, flexibly fused to the 1TEL crystallization chaperone, Thr-Val linker variant, SUMO tag-free preparation |
| Authors | Gajjar, P.L., Litchfield, C.M., Callahan, M., Redd, N., Doukov, T., Moody, J.D. |
| R / Rfree | 0.18 / 0.20 |
| Unit cell edges [Å] | 100.88 x 100.88 x 49.75 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

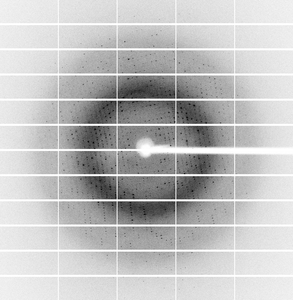

Dataset E8_1_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 359.998 |
| Phi [°] | 359.998 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2022-06-25 |
| Equipment | BL12-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
