Diffraction project datasets 8bbw
- Resolution: 1.4 Å
- Space group: P 1 21 1
PDB website for 8BBW
PDB validation report for 8BBW
doi:10.18430/M38BBW
Project details
| Title | Crystal structure of medical leech destabilase (low salt) |
| Authors | Marin, E., Bukhdruker, S., Manuvera, V., Kornilov, D., Zinovev, E., Bobrovsky, P., Lazarev, V., Borshchevskiy, V. |
| R / Rfree | 0.15 / 0.19 |
| Unit cell edges [Å] | 26.39 x 35.87 x 54.47 |
| Unit cell angles [°] | 90.0, 92.3, 90.0 |

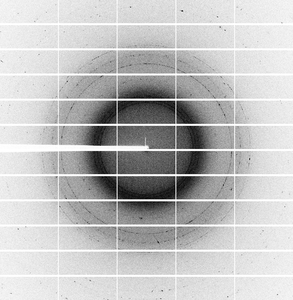

Dataset 2_2438_A5_w1_1_####.cbf details
| Number of frames | 1500 (1 - 1500) |
| Distance [mm] | 235.7 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 39.0 |
| Kappa / Chi [°] | 0.0014 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 1.07228 |
| Equipment | ID29 at ESRF (European Synchrotron Radiation Facility) |

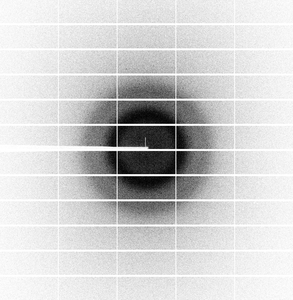

Dataset 2_2438_A5_w1_2_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 153.4 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 159.0 |
| Kappa / Chi [°] | 0.0014 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 1.07228 |
| Equipment | ID29 at ESRF (European Synchrotron Radiation Facility) |
