Diffraction project datasets 8b4m
- Resolution: 3.04 Å
- Space group: P 1 21 1
Uniprot website for D5SK09
PDB website for 8B4M
PDB validation report for 8B4M
doi:10.18430/M38B4M
Project details
| Title | Crystal structure of a hydropyrene synthase (M75L variant) in its closed conformation |
| Authors | Helmer, C.P.O., Driller, R., Loll, B. |
| R / Rfree | 0.25 / 0.31 |
| Unit cell edges [Å] | 106.72 x 82.32 x 148.29 |
| Unit cell angles [°] | 90.0, 92.3, 90.0 |

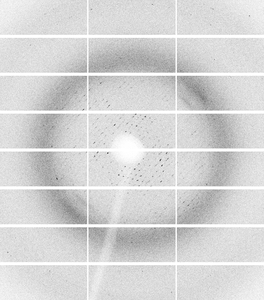

Dataset dts_1_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 326.8 |
| Oscillation width [°] | 0.10 |
| Kappa / Chi [°] | -9999.0 |
| Phi [°] | -9999.0 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.2 at BESSY II (Bessy II) |
