Diffraction project datasets 8b4l
- Resolution: 3.394 Å
- Space group: P 21 21 21
Uniprot website for D5SK09
PDB website for 8B4L
PDB validation report for 8B4L
doi:10.18430/M38B4L
Project details

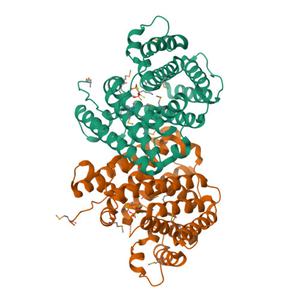

| Title | Crystal structure of a selenomethionine-labeled hydropyrene synthase (M75L variant) in its closed conformation |
| Authors | Helmer, C.P.O., Driller, R., Loll, B. |
| R / Rfree | 0.24 / 0.28 |
| Unit cell edges [Å] | 80.70 x 176.69 x 185.65 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

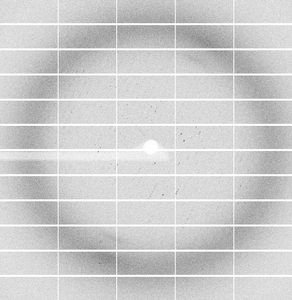

Dataset IES_x3_IES1_001_#####.cbf details
| Number of frames | 8000 (1 - 8000) |
| Distance [mm] | 623.1 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 320.0 |
| Phi [°] | 135.0 |
| Wavelength [Å] | 0.97950 |
| Experiment Date | 2017-09-01 |
| Equipment | P11 |
