Diffraction project datasets 8pqh
- Resolution: 2.5 Å
- Space group: P 21 21 21
Uniprot website for P16234
PDB website for 8PQH
PDB validation report for 8PQH
doi:10.18430/m38pqh
Project details

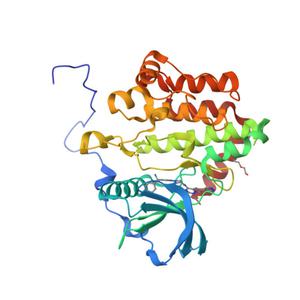

| Title | PDGFRA T674I mutant kinase domain in complex with avapritinib |
| Authors | Teuber, A., Kleinboelting, S., Mueller, M.P., Rauh, D. |
| R / Rfree | 0.22 / 0.25 |
| Unit cell edges [Å] | 52.27 x 73.26 x 102.59 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

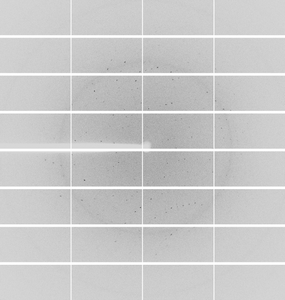

Dataset 01AT09_ds1_1_master.h5@##### details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 335.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | -80.0 |
| Wavelength [Å] | 1.00007 |
| Equipment | X10SA at SLS (Swiss Light Source) |
