Diffraction project datasets 7uzt
Project details
| Title |

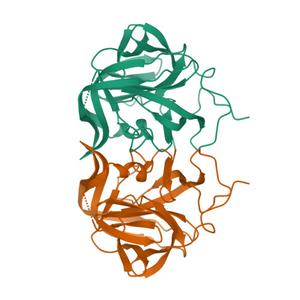

Crystal structure of the human astrovirus MLB1 capsid protein spike domain at 1.86-A resolution |
| Authors |
Delgado-Cunningham, K., DuBois, R. |
| R / Rfree |
0.24 / 0.26 |
| Unit cell edges [Å] |
72.10 x
77.11 x
75.45
|
| Unit cell angles [°] |
90.0,
110.7,
90.0
|

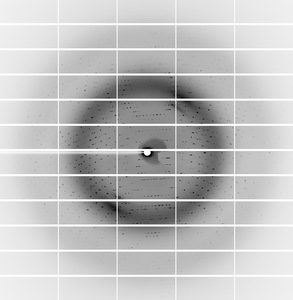

Dataset A15_1_#####.cbf details
| Number of frames |
1800 (1 - 1800) |
| Distance [mm] |
330.0 |
| Oscillation width [°] |
0.20 |
| Wavelength [Å] |
1.00004 |
| Experiment Date |
2021-06-05 |
| Equipment |
5.0.2
at ALS (Advanced Light Source)
|

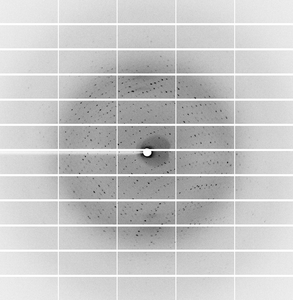

Dataset F9_101_#####.cbf details
| Number of frames |
3600 (1 - 3600) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.20 |
| Omega [°] |
180.0 |
| Wavelength [Å] |
0.97942 |
| Experiment Date |
2021-06-04 |
| Equipment |
5.0.2
at ALS (Advanced Light Source)
|

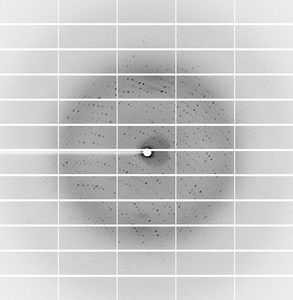

Dataset F9_1_#####.cbf details
| Number of frames |
3600 (1 - 3600) |
| Distance [mm] |
400.0 |
| Oscillation width [°] |
0.20 |
| Wavelength [Å] |
0.97942 |
| Experiment Date |
2021-06-04 |
| Equipment |
5.0.2
at ALS (Advanced Light Source)
|
