Diffraction project datasets 7u4w
- Resolution: 2.1 Å
- Space group: P 65
PDB website for 7U4W
PDB validation report for 7U4W
doi:10.18430/M37U4W
Project details

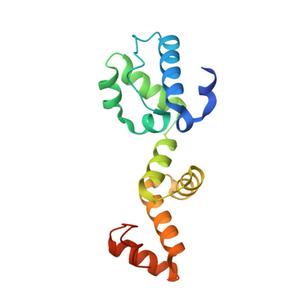

| Title | The ubiquitin-associated domain of human thirty-eight negative kinase-1 flexibly fused to the 1TEL crystallization chaperone via a 2-glycine linker and crystallized at traditional protein concentration |
| Authors | Nawarathnage, S., Pedroza Romo, M.J., Smith, T., Bunn, D., Stewart, C., Doukov, T., Moody, J.D. |
| R / Rfree | 0.25 / 0.28 |
| Unit cell edges [Å] | 67.97 x 67.97 x 55.75 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

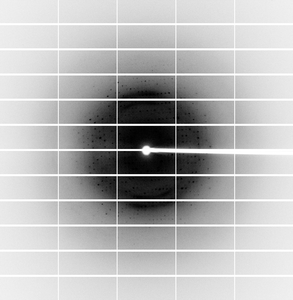

Dataset L7_1_#####.cbf details
| Number of frames | 2700 (1 - 2700) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 359.999 |
| Phi [°] | 359.999 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2020-12-02 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
