Diffraction project datasets 7thb
- Resolution: 1.64 Å
- Space group: P 1
PDB website for 7THB
PDB validation report for 7THB
doi:10.18430/M37THB
Project details

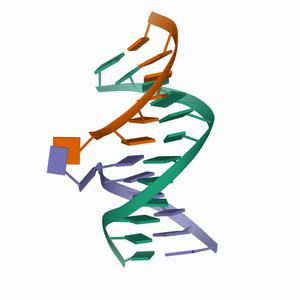

| Title | Crystal structure of an RNA-5'/DNA-3' strand exchange junction |
| Authors | Cofsky, J.C., Knott, G.J., Gee, C.L., Doudna, J.A. |
| R / Rfree | 0.24 / 0.28 |
| Unit cell edges [Å] | 37.03 x 43.59 x 52.18 |
| Unit cell angles [°] | 92.1, 103.7, 100.0 |

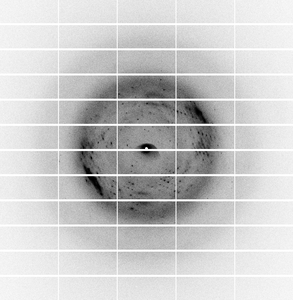

Dataset CPS1741_p04_1_#####.cbf details
| Number of frames | 6000 (1 - 6000) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 225.0 |
| Phi [°] | 225.0 |
| Wavelength [Å] | 1.11581 |
| Experiment Date | 2020-12-17 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
