Diffraction project datasets 7tdy
- Resolution: 1.53 Å
- Space group: P 65
PDB website for 7TDY
doi:10.18430/M37TDY
Project details

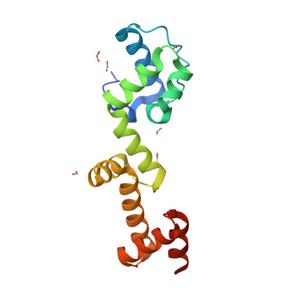

| Title | The ubiquitin-associated domain of human thirty-eight negative kinase 1, flexibly fused to the 1TEL crystallization chaperone via a 2-glycine linker and crystallized at low protein concentration |
| Authors | Nawarathnage, S., Bunn, D.R., Stewart, C., Doukev, T., Moody, J.D. |
| R / Rfree | 0.21 / 0.22 |
| Unit cell edges [Å] | 67.22 x 67.22 x 60.89 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

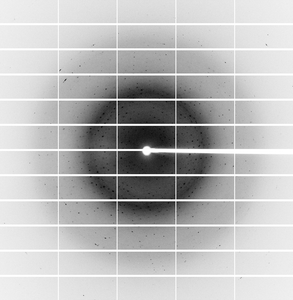

Dataset D3_1_#####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 115.42 |
| Phi [°] | 115.42 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2021-06-29 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
