Diffraction project datasets 7tcd
- Resolution: 1.7 Å
- Space group: C 1 2 1
PDB website for 7TCD
PDB validation report for 7TCD
doi:10.18430/m37tcd
Project details
| Title | LOV2-DARPIN fusion: D13 |
| Authors | Mittl, P. |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 138.50 x 47.90 x 78.07 |
| Unit cell angles [°] | 90.0, 107.6, 90.0 |

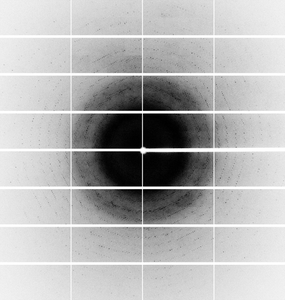

Dataset AML001_15_1_#####.cbf details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 40.0 |
| Wavelength [Å] | 0.88557 |
| Equipment | X06SA at SLS (Swiss Light Source) |

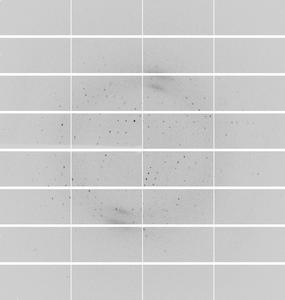

Dataset col_1_master.h5@##### details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 180.0 |
| Wavelength [Å] | 0.99987 |
| Equipment | X06SA at SLS (Swiss Light Source) |
