Diffraction project datasets 7t1q
- Resolution: 2.25 Å
- Space group: P 21 21 21
PDB website for 7T1Q
PDB validation report for 7T1Q
doi:10.18430/m37t1q
Project details

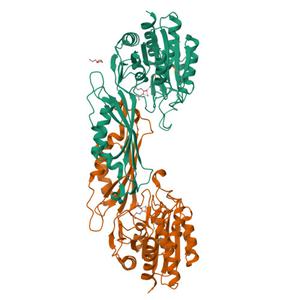

| Title | Crystal Structure of the Succinyl-diaminopimelate Desuccinylase (DapE) from Acinetobacter baumannii in complex with Succinic Acid |
| Authors | Minasov, G., Shuvalova, L., Brunzelle, J.S., Dubrovska, I., Pshenychnyi, S., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 68.32 x 103.46 x 145.16 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

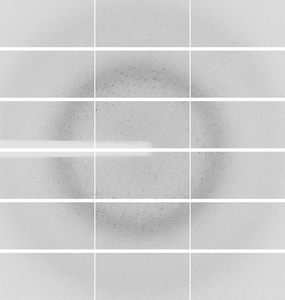

Dataset idp97674-103-e_1_3_2.001_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 220.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | -30.0 |
| Wavelength [Å] | 0.97848 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
