Diffraction project datasets 7s27

  • Resolution: 1.6 Å
  • Space group: P 43 21 2
Download all images (371.3 MB)

PDB website for 7S27
PDB validation report for 7S27

doi:10.18430/M37S27

Project details

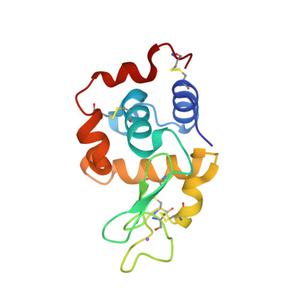

Title Crystal structure of hen egg white lysozyme
Authors Lima, L.M.T.R., Ramos, N.G., Ribeiro, F.S.
R / Rfree 0.18 / 0.22
Unit cell edges [Å] 78.49 x 78.49 x 37.04
Unit cell angles [°] 90.0, 90.0, 90.0

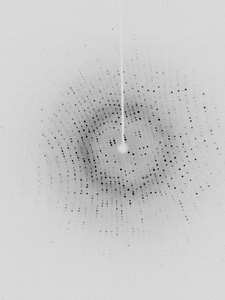

Dataset 125K_Inmetro_N1_01_####.sfrm details

Number of frames 177 (1 - 177)
Distance [mm] 40.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Wavelength [Å] 1.54184
Experiment Date 2020-11-10
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

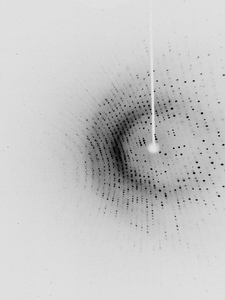

Dataset 125K_Inmetro_N1_02_####.sfrm details

Number of frames 268 (1 - 268)
Distance [mm] 36.0
Oscillation width [°] 0.50
Omega [°] 104.0
Kappa / Chi [°] 325.0
Wavelength [Å] 1.54184
Experiment Date 2020-11-10
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

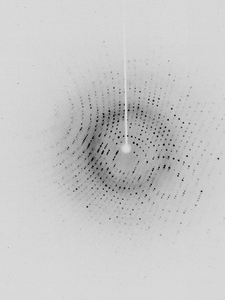

Dataset 125K_Inmetro_N1_03_####.sfrm details

Number of frames 177 (1 - 177)
Distance [mm] 37.0
Oscillation width [°] 0.50
Omega [°] 13.82
Kappa / Chi [°] 337.0
Phi [°] 281.83
Wavelength [Å] 1.54184
Experiment Date 2020-11-10
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
