Diffraction project datasets 7rjj
- Resolution: 1.88 Å
- Space group: P 61
PDB website for 7RJJ
PDB validation report for 7RJJ
doi:10.18430/m37rjj
Project details

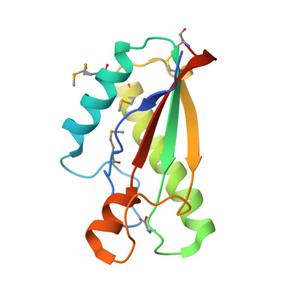

| Title | Crystal Structure of the Peptidoglycan Binding Domain of the Outer Membrane Protein (OmpA) from Klebsiella pneumoniae with bound D-alanine |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 41.89 x 41.89 x 267.93 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

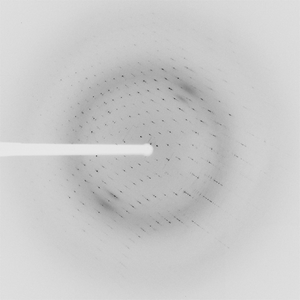

Dataset idp97598-102sm-b_1_2_7.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 260.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | -150.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2021-01-29 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
