Diffraction project datasets 7r3w
- Resolution: 3.6 Å
- Space group: C 2 2 21
PDB website for 7R3W
PDB validation report for 7R3W
doi:10.18430/M37R3W
Project details

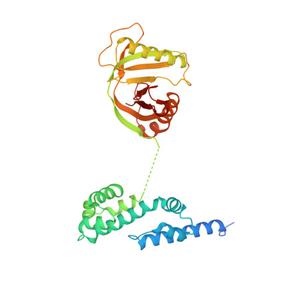

| Title | Crystal structure of the albicidin resistance protein STM3175 from Salmonella typhimurium |
| Authors | Dimos, N., Kosol, S., Suessmuth, R., Loll, B. |
| R / Rfree | 0.27 / 0.31 |
| Unit cell edges [Å] | 120.65 x 244.92 x 139.32 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

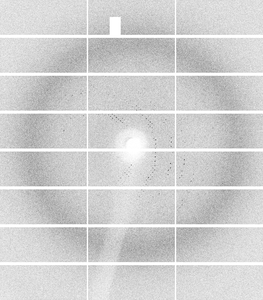

Dataset stm3175_x10_1_####.cbf details
| Number of frames | 1300 (1 - 1300) |
| Distance [mm] | 381.3 |
| Oscillation width [°] | 0.12 |
| Omega [°] | 180.0 |
| Kappa / Chi [°] | -9999.0 |
| Phi [°] | -9999.0 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.2 at BESSY II (Bessy II) |
