Diffraction project datasets 7qiq

  • Resolution: 1.85 Å
  • Space group: P 61
Download all images (1.8 GB)

PDB website for 7QIQ
PDB validation report for 7QIQ

doi:10.18430/M37QIQ

Project details

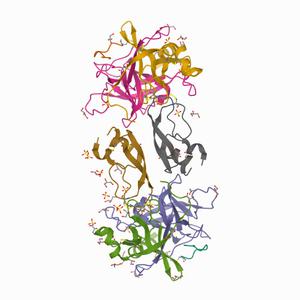

Title CRYSTAL STRUCTURE OF THE P1 aminobutanoic acid (ABU) BPTI MUTANT- BOVINE CHYMOTRYPSIN COMPLEX
Authors Dimos, N., Leppkes, J., Koksch, B., Wahl, M.C., Loll, B.
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 100.44 x 100.44 x 206.33
Unit cell angles [°] 90.0, 90.0, 120.0

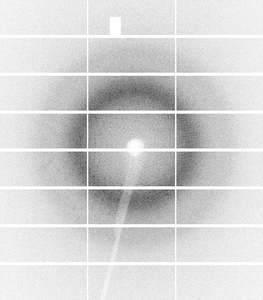

Dataset Chymo_Abu_x4_2_####.cbf details

Number of frames 2000 (1 - 2000)
Distance [mm] 190.7
Oscillation width [°] 0.10
Omega [°] 180.0
Kappa / Chi [°] -9999.0
Phi [°] -9999.0
Wavelength [Å] 0.91840
Equipment BL14.2 at BESSY II (Bessy II)
