Diffraction project datasets 7n2b
- Resolution: 3.221 Å
- Space group: P 1 21 1
PDB website for 7N2B
PDB validation report for 7N2B
doi:10.18430/M37N2B
Project details

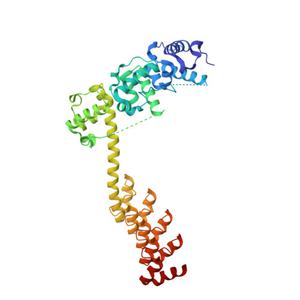

| Title | A DARPin semi-rigidly fused to the 3TEL crystallization chaperone |
| Authors | Sarath Nawarathange, S.D., Gajjar, P., Bunn, D., Stewart, C., Doukov, T., Moody, J.D. |
| R / Rfree | 0.23 / 0.24 |
| Unit cell edges [Å] | 45.96 x 63.63 x 166.01 |
| Unit cell angles [°] | 90.0, 90.2, 90.0 |

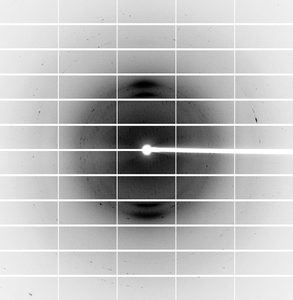

Dataset B2_1_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 170.0 |
| Phi [°] | 170.0 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2020-10-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
