Diffraction project datasets 7n1o
- Resolution: 2.77 Å
- Space group: P 65
PDB website for 7N1O
PDB validation report for 7N1O
doi:10.18430/M37N1O
Project details

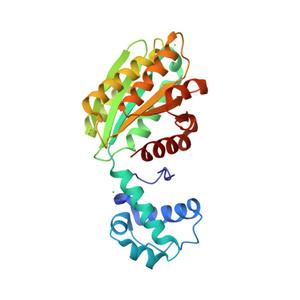

| Title | The von Willebrand factor A domain of human capillary morphogenesis gene II, flexibly fused to the 1TEL crystallization chaperone |
| Authors | Mathis, M.H., Bezzant, B.D., Ramirez, D.T., Sarath Nawarathnage, S.D., Doukov, T., Moody, J.D. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 103.40 x 103.40 x 56.55 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

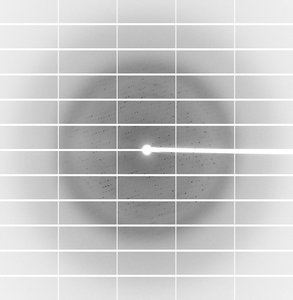

Dataset D8_1_#####.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 350.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 169.999 |
| Phi [°] | 169.999 |
| Wavelength [Å] | 0.97946 |
| Experiment Date | 2020-10-21 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
