Diffraction project datasets 7n1m
- Resolution: 1.96 Å
- Space group: P 21 21 21
PDB website for 7N1M
PDB validation report for 7N1M
doi:10.18430/m37n1m
Project details

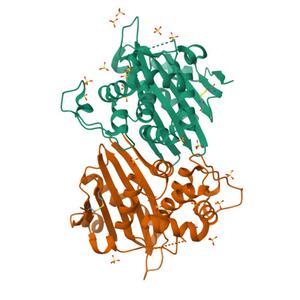

| Title | Crystal Structure of the Class D Beta-lactamase OXA-935 from Pseudomonas aeruginosa, Orthorhombic Crystal Form |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Brunzelle, J.B., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 47.68 x 91.38 x 125.79 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

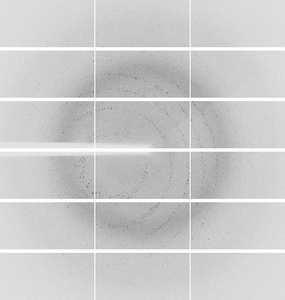

Dataset idp97990-405cut-aa_1_1_1.001_master.h5@##### details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 175.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 55.0 |
| Kappa / Chi [°] | 95.0 |
| Wavelength [Å] | 1.12713 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
