Diffraction project datasets 7ms7
- Resolution: 1.45 Å
- Space group: C 1 2 1
PDB website for 7MS7
doi:10.18430/m37ms7
Project details

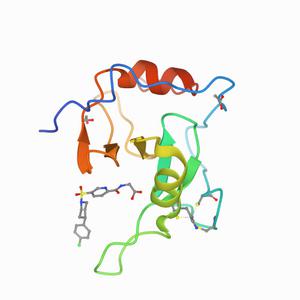

| Title | Structure of USP5 zinc-finger ubiquitin binding domain co-crystallized with (5-((4-(4-chlorophenyl)piperidin-1-yl)sulfonyl)picolinoyl)glycine |
| Authors | Mann, M.K., Zepeda-Velazquez, C.A., Alvarez, H.G., Dong, A., Kiyota, T., Aman, A., Arrowsmith, C.H., Al-Awar, R., Harding, R.J., Schapira, M. |
| R / Rfree | 0.17 / 0.18 |
| Unit cell edges [Å] | 61.56 x 84.87 x 59.54 |
| Unit cell angles [°] | 90.0, 98.9, 90.0 |

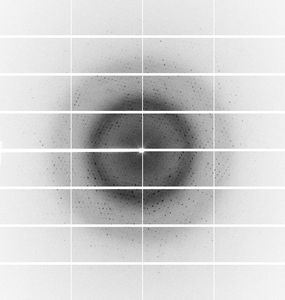

Dataset x262830_1_######.cbf details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 0.50 |
| Wavelength [Å] | 0.97918 |
| Experiment Date | 2021-02-13 |
| Equipment | 24-ID-E at APS (Advanced Photon Source) |
