Diffraction project datasets 7l71
- Resolution: 0.97 Å
- Space group: C 1 2 1
PDB website for 7L71
PDB validation report for 7L71
doi:10.18430/m37l71
Project details

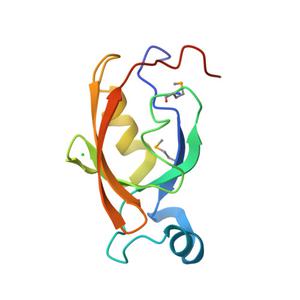

| Title | Crystal Structure of the PDZ Domain of the Serine Peptidase HtrA from Streptococcus agalactiae. |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.15 |
| Unit cell edges [Å] | 88.88 x 29.33 x 35.83 |
| Unit cell angles [°] | 90.0, 101.5, 90.0 |

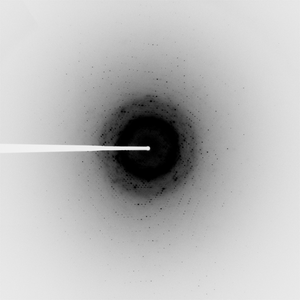

Dataset idp97042-103sm-a_1_1_3.### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 90.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 10.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-08-18 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
