Diffraction project datasets 7l6t
- Resolution: 1.78 Å
- Space group: P 31 2 1
Uniprot website for P0DTD1
PDB website for 7L6T
PDB validation report for 7L6T
doi:10.18430/m37l6t
Project details

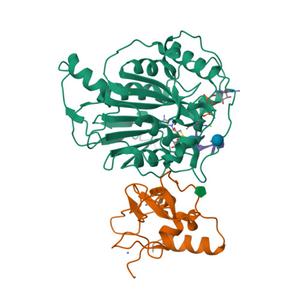

| Title | Crystal Structure of SARS-CoV-2 Nsp16/10 Heterodimer in Complex with (m7GpppA2m)pUpUpApApA (Cap-1), S-Adenosyl-L-homocysteine (SAH) and two Magnesium (Mg) ions. |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Kiryukhina, O., Brunzelle, J.S., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.16 |
| Unit cell edges [Å] | 169.35 x 169.35 x 52.63 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

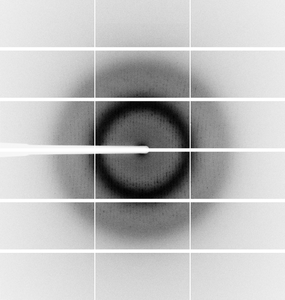

Dataset cpx_521616-11k-w_1_1_2.001_master.h5@##### details
| Number of frames | 2000 (1 - 2000) |
| Distance [mm] | 110.0 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 55.0 |
| Wavelength [Å] | 1.12708 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
