Diffraction project datasets 7l6l
- Resolution: 1.75 Å
- Space group: P 1 21 1
PDB website for 7L6L
PDB validation report for 7L6L
doi:10.18430/m37l6l
Project details

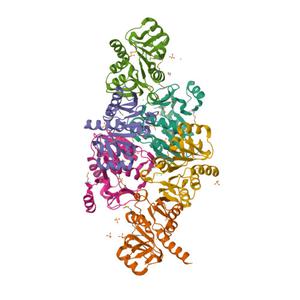

| Title | Crystal Structure of the DNA-binding Transcriptional Repressor DeoR from Escherichia coli str. K-12 |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Wiersum, G., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.18 |
| Unit cell edges [Å] | 70.75 x 64.73 x 140.71 |
| Unit cell angles [°] | 90.0, 97.9, 90.0 |

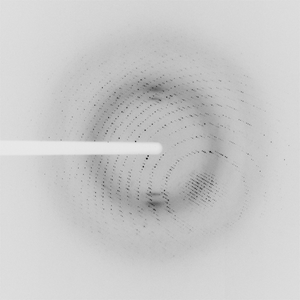

Dataset idp96077sm-a_1_1_6.### details
| Number of frames | 600 (1 - 600) |
| Distance [mm] | 210.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 70.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2019-10-17 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
