Diffraction project datasets 7l5v
- Resolution: 1.3 Å
- Space group: P 1 21 1
PDB website for 7L5V
PDB validation report for 7L5V
doi:10.18430/m37l5v
Project details

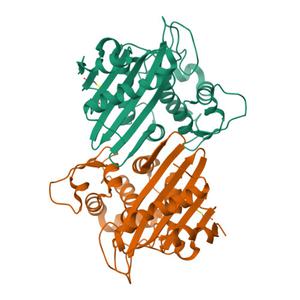

| Title | Crystal Structure of the Class D Beta-lactamase OXA-935 from Pseudomonas aeruginosa, Monoclinic Crystal Form |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Brunzelle, J.S., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.15 / 0.17 |
| Unit cell edges [Å] | 46.07 x 75.04 x 82.75 |
| Unit cell angles [°] | 90.0, 91.9, 90.0 |

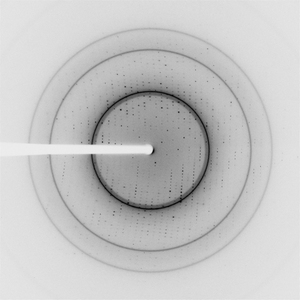

Dataset idp91077-5-b.### details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 260.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2015-08-24 |
| Equipment | 21-ID-D at APS (Advanced Photon Source) |
