Diffraction project datasets 7l5r
- Resolution: 1.65 Å
- Space group: P 21 21 21
PDB website for 7L5R
PDB validation report for 7L5R
doi:10.18430/m37l5r
Project details

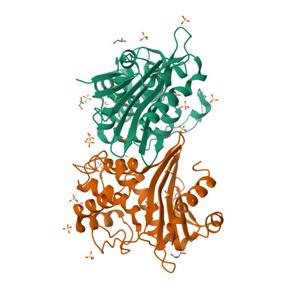

| Title | Crystal Structure of the Oxacillin-hydrolyzing Class D Extended-spectrum Beta-lactamase OXA-14 from Pseudomonas aeruginosa |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Brunzelle, J.S., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 48.81 x 96.35 x 125.14 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

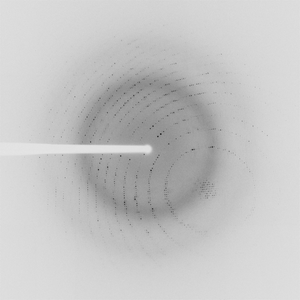

Dataset idp97990-406-a_1_2_7.### details
| Number of frames | 450 (1 - 450) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.40 |
| Phi [°] | -40.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-05-13 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
