Diffraction project datasets 7kpo
- Resolution: 1.28 Å
- Space group: C 2 2 21
PDB website for 7KPO
PDB validation report for 7KPO
doi:10.18430/m37kpo
Project details

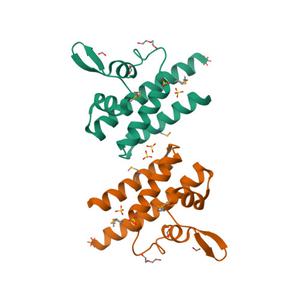

| Title | High Resolution Crystal Structure of the DNA-binding Domain from the Sensor Histidine Kinase ChiS from Vibrio cholerae |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Wiersum, G., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 51.91 x 78.61 x 72.37 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

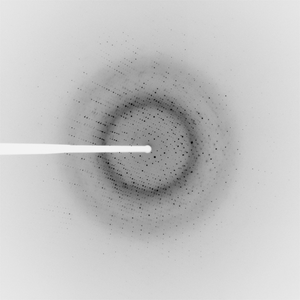

Dataset idp04495401sm-a_2_3_4.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 40.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2019-12-11 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
