Diffraction project datasets 7k1u
- Resolution: 2.4 Å
- Space group: P 31 2 1
PDB website for 7K1U
PDB validation report for 7K1U
doi:10.18430/m37k1u
Project details
| Title | Crystal Structure of SrtB-anchored Collagen-binding Adhesin Fragment (residues 206-565) from Clostridioides difficile strain 630 |
| Authors | Minasov, G., Shuvalova, L., Rosas-Lemus, M., Wiersum, G., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 69.32 x 69.32 x 187.53 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

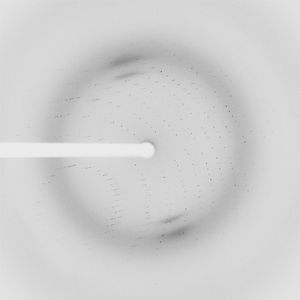

Dataset idp05502-502sm-b_1_1_5.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 330.0 |
| Oscillation width [°] | 0.40 |
| Phi [°] | 80.0 |
| Wavelength [Å] | 0.97872 |
| Experiment Date | 2020-05-13 |
| Equipment | 21-ID-F at APS (Advanced Photon Source) |
