Diffraction project datasets 7380613_2f46
- Method: MAD
- Resolution: 1.41 Å
- Space group: C 1 2 1
PDB website for 2F46
doi:10.18430/M32F46
Project details

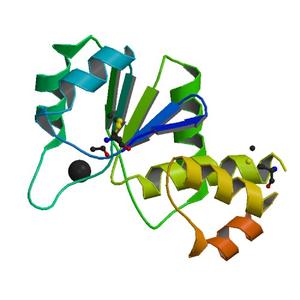

| Title | Crystal structure of a putative phosphatase (nma1982) from neisseria meningitidis z2491 at 1.41 A resolution |
| Authors | Krishna, S.S., Tautz, L., Xu, Q., McMullan, D., Miller, M.D., Abdubek, P., Ambing, E., Astakhova, T., Axelrod, H.L., Carlton, D., Chiu, H.J., Clayton, T., DiDonato, M., Duan, L., Elsliger, M.A., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Morse, A.T., Mustelin, T., Nigoghossian, E., Oommachen, S., Reyes, R., Rife, C.L., van den Bedem, H., Weekes, D., White, A., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.20 / 0.23 |
| Unit cell edges [Å] | 144.28 x 33.47 x 59.90 |
| Unit cell angles [°] | 90.0, 96.2, 90.0 |

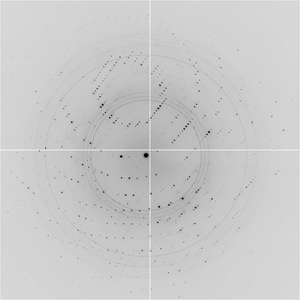

Dataset 19427_1_E1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 122.0 |
| Wavelength [Å] | 0.97975 |
| Experiment Date | 2005-10-11 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |

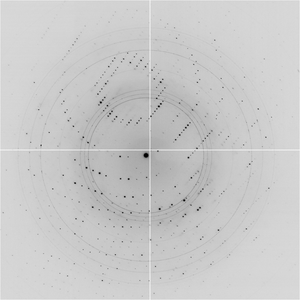

Dataset 19427_1_E2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 150.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 122.0 |
| Wavelength [Å] | 1.01995 |
| Experiment Date | 2005-10-11 |
| Equipment | 8.3.1 at ALS (Advanced Light Source) |
