Diffraction project datasets 6y2b
- Resolution: 1.37 Å
- Space group: P 21 21 21
PDB website for 6Y2B
PDB validation report for 6Y2B
doi:10.18430/m36y2b
Project details

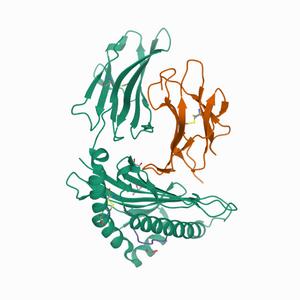

| Title | Crystal structure of HLA-B2709 complexed with the nona-peptide mQ |
| Authors | Loll, B., Rueckert, C., Ziegler, B.-U., Ziegler, A. |
| R / Rfree | 0.14 / 0.18 |
| Unit cell edges [Å] | 50.77 x 82.21 x 109.49 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

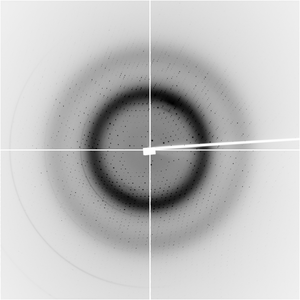

Dataset ck01_1_###.img details
| Number of frames | 140 (2 - 141) |
| Distance [mm] | 125.0 |
| Oscillation width [°] | 0.80 |
| Omega [°] | 90.8 |
| Phi [°] | 90.8 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |

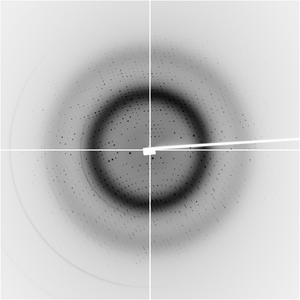

Dataset ck01_1_###.img details
| Number of frames | 38 (147 - 184) |
| Distance [mm] | 125.0 |
| Oscillation width [°] | 0.80 |
| Omega [°] | 206.8 |
| Phi [°] | 206.8 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |

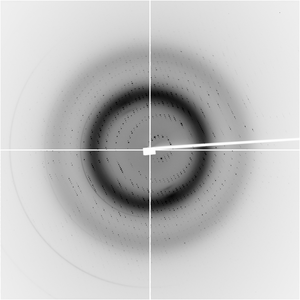

Dataset ck01_1_###.img details
| Number of frames | 55 (186 - 240) |
| Distance [mm] | 125.0 |
| Oscillation width [°] | 0.80 |
| Omega [°] | 238.0 |
| Phi [°] | 238.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-19 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |
