Diffraction project datasets 6y2a
- Resolution: 1.25 Å
- Space group: P 21 21 21
PDB website for 6Y2A
PDB validation report for 6Y2A
doi:10.18430/m36y2a
Project details

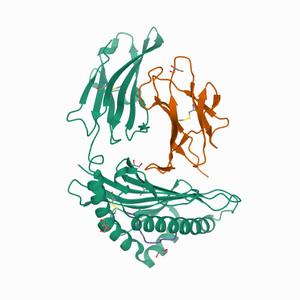

| Title | Crystal structure of HLA-B2705 complexed with the nona-peptide mQ |
| Authors | Loll, B., Rueckert, C., Ziegler, B.-U., Ziegler, A. |
| R / Rfree | 0.13 / 0.15 |
| Unit cell edges [Å] | 50.89 x 82.32 x 109.61 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

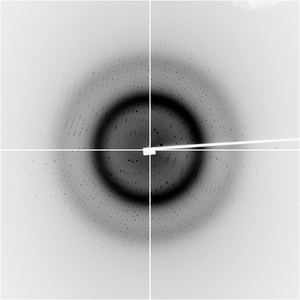

Dataset ck02_1_###.img details
| Number of frames | 97 (3 - 99) |
| Distance [mm] | 115.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 101.0 |
| Phi [°] | 101.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-20 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |

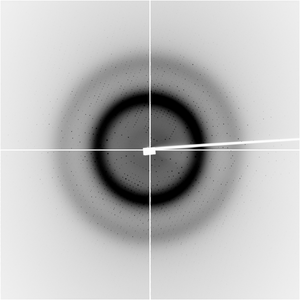

Dataset ck02_2_###.img details
| Number of frames | 66 (4 - 69) |
| Distance [mm] | 115.0 |
| Oscillation width [°] | 0.80 |
| Omega [°] | 150.0 |
| Phi [°] | 150.0 |
| Wavelength [Å] | 0.93300 |
| Experiment Date | 2004-09-20 |
| Equipment | ID14-2 at ESRF (European Synchrotron Radiation Facility) |
