Diffraction project datasets 6xd8
- Resolution: 1.52 Å
- Space group: P 21 21 2
PDB website for 6XD8
PDB validation report for 6XD8
doi:10.18430/m36xd8
Project details

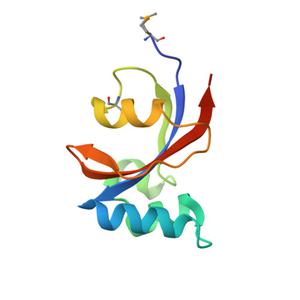

| Title | Crystal Structure of Peptidylprolyl Isomerase (PrsA) Fragment from Bacillus anthracis |
| Authors | Minasov, G., Shuvalova, L., Kiryukhina, O., Dubrovska, I., Wiersum, G., Satchell, K.J.F., Center for Structural Genomics of Infectious Diseases (CSGID) |
| R / Rfree | 0.17 / 0.22 |
| Unit cell edges [Å] | 48.89 x 107.34 x 31.70 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

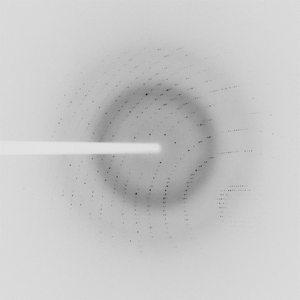

Dataset idp91264-106sm-a_2_3_6.### details
| Number of frames | 300 (1 - 300) |
| Distance [mm] | 190.0 |
| Oscillation width [°] | 0.60 |
| Phi [°] | 25.0 |
| Wavelength [Å] | 0.97856 |
| Experiment Date | 2020-02-14 |
| Equipment | 21-ID-G at APS (Advanced Photon Source) |
